13 CHANNEL BACK BOX BUTTON
|
 |
|||||
 |
 |
 |
|||||
  |

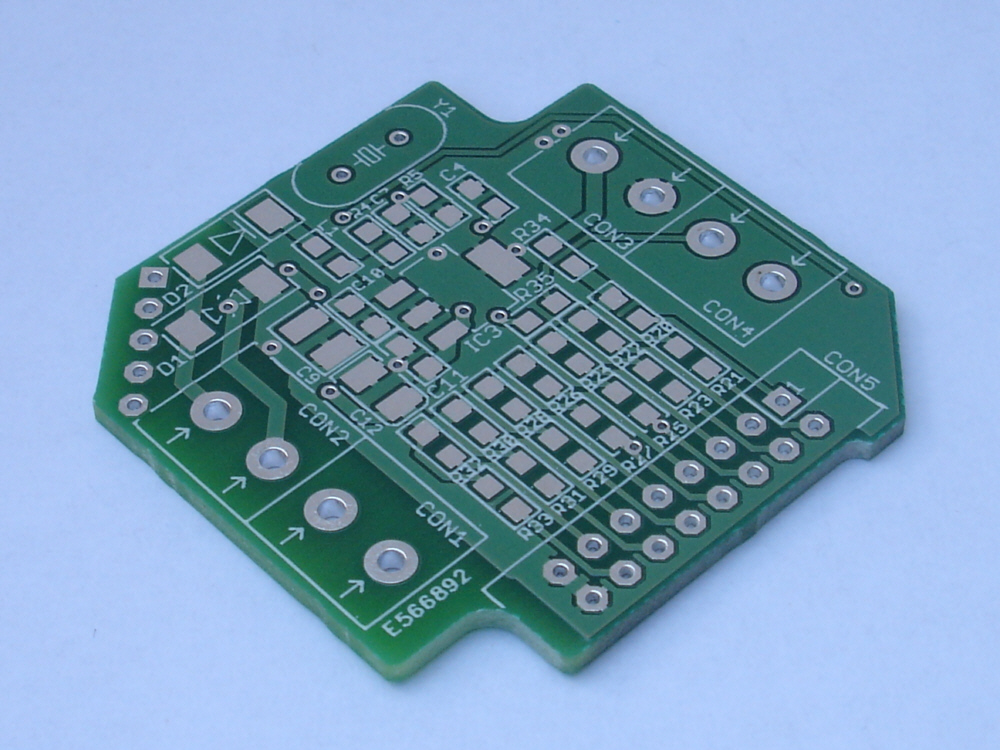

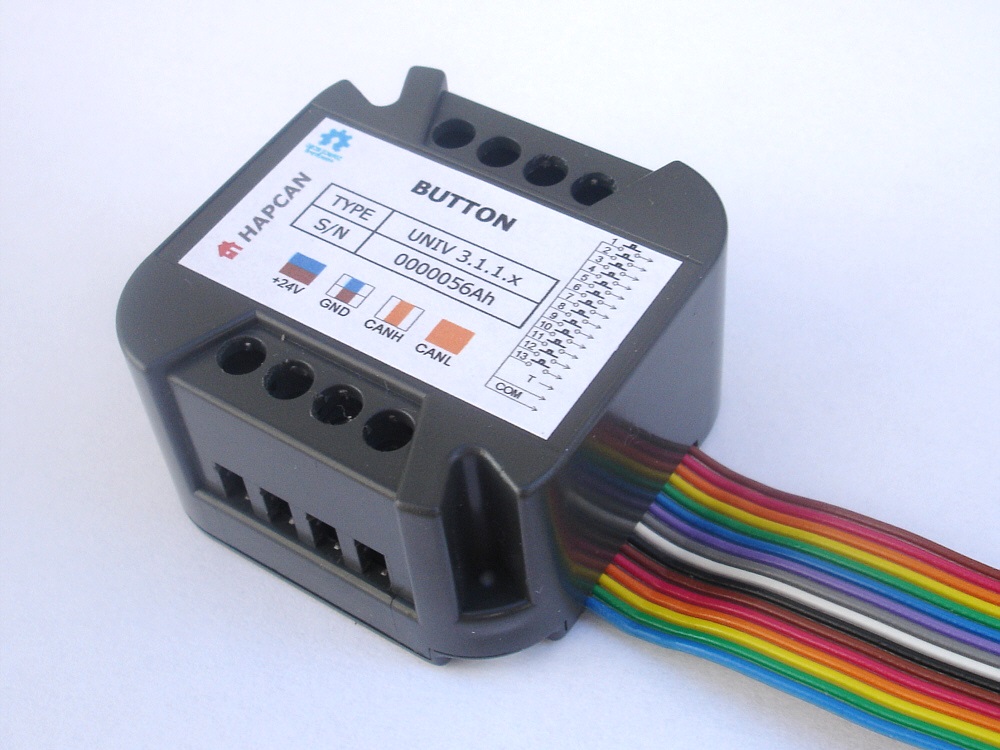

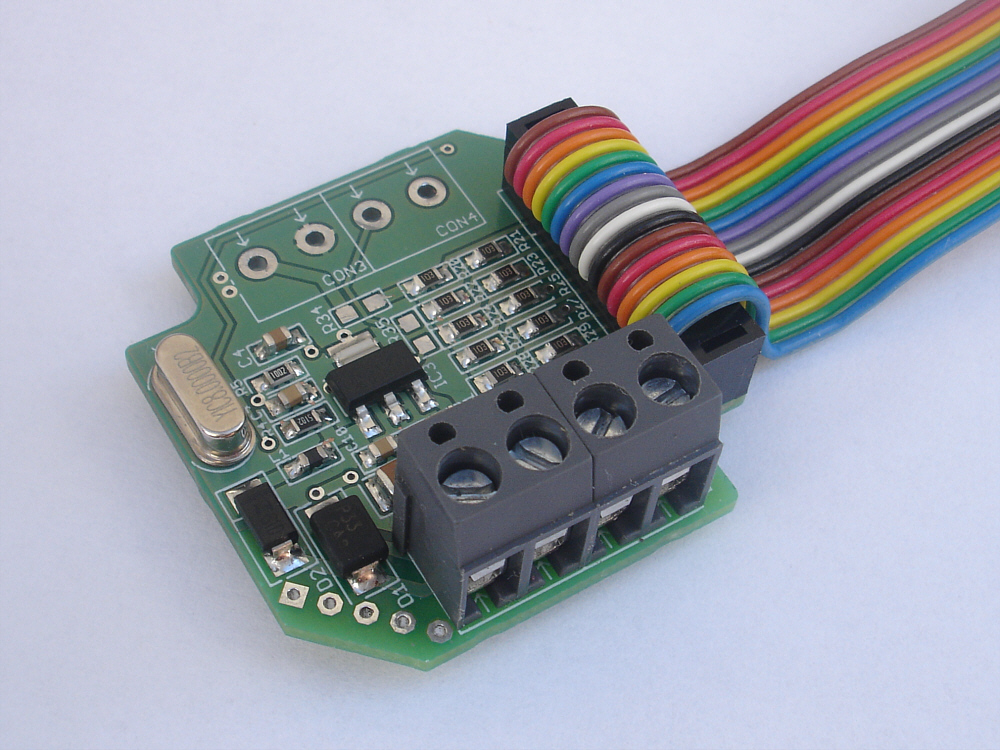

Hardware UNIV 3.1.1.x - 13 channel button module. Up to 13 buttons with free voltage contacts can be connected to the module - Possibility to connect 13 LEDs to indicate status of other nodes - Measures temperatures from -55C to +125C - For deep back box mounting - Operating of module depends on firmware uploaded into it
|
||||||||||||
  |
Firmware UNIV 3.1.1.0 [rev2] - Firmware for 13 channel back box button - 7 types of button behaving is recognized - 13 LEDs can be connected to indicate status of other devices on the network - Included temperature and thermostat feature when Dallas sensor is connected - Allows defining up to 128 CAN messages which can indirectly control the module - Transmit (42 messages) and receive (42 messages) FIFO buffers
|
