This module connects HAPCAN system to computer network. The ethernet port is used





ETHERNET INTERFACE

for DIN rail

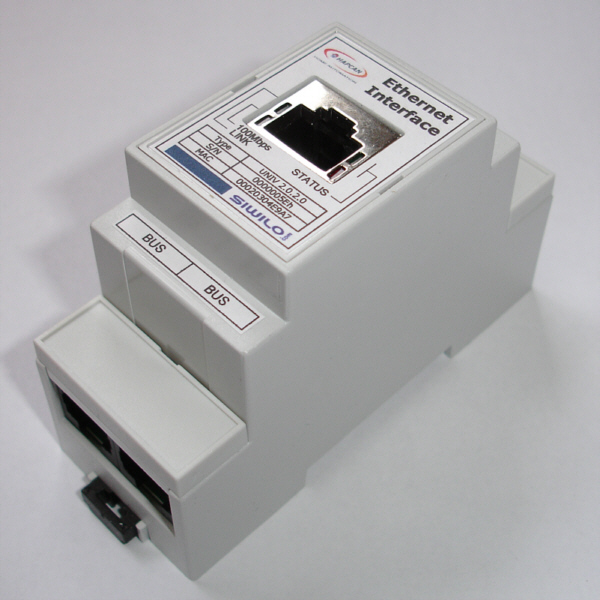

HAPCAN Ethernet Interface


HAPCAN hardware icon Hardware UNIV 2.0.2.0

·   Ethernet interface for HAPCAN system.

·   Operation voltage 10-24V

·   Current consumption 65mA

·   Module is transparent for all messages sent from PC to HAPCAN bus, and vice versa.

·   Uses Tibbo programmable Ethernet EM202 module

·   Supports 10/100BaseT





Application Note

554kB


Tibbo Device Explorer

480kB


Tibbo firmware file

60kB


Tibbo DS Manager

8,5MB

HAPCAN firmware icon

Firmware UNIV 2.0.2.2

 - compatible with HAPCAN Programmer 2.91 & HAPCAN Visualizer 1.12 or earlier

·   Module is transparent for all messages sent from PC to HAPCAN bus, and vice versa.

·   There are receive and transmit FIFO buffers





Firmware Note

328kB


Firmware File [rev0]

2kB
HAPCAN firmware icon

Firmware UNIV 2.0.2.3

 - compatible with HAPCAN Programmer 3.0 & HAPCAN Visualizer 3.0 or later

·   Module is transparent for all messages sent from PC to HAPCAN bus, and vice versa.

·   There are receive and transmit FIFO buffers

·   Ethernet frame extended with control bytes (start, stop, check sum)





Firmware Note

551kB


Firmware File [rev2]

2kB
