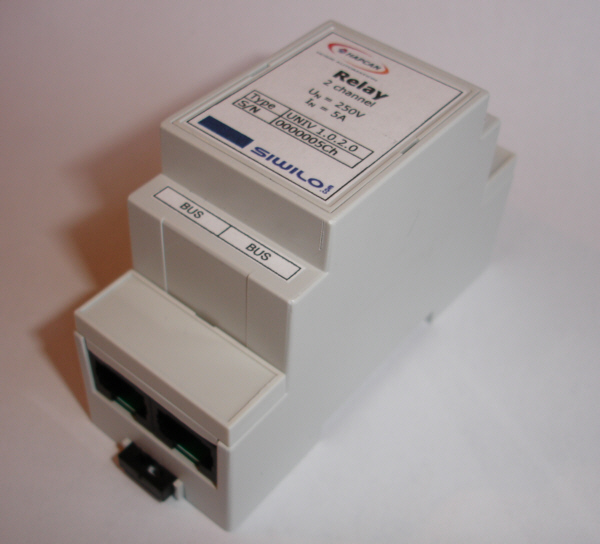

RELAY

2 channel

monostable

Hardware UNIV 1.0.2.0

·   Controller of 2 5A monostable relays.

·   Operation voltage 16-24V

·   Current consumption 17mA, maximum 50mA

·   For DIN rail mounting.

·   Dimensions 90x58x36 mm (2 mod)

	Application Note	434kB
	PE014012 relay datasheet	356kB

Firmware UNIV 1.0.2.10

·   Controller of 2 monostable relays

·   3 control instructions (on, off, toggle)

·   3 blocking instructions

·   2 timers (1 for each relay) for instruction execution delay 1s-20h

·   Allows to set up 96 conditions for receiving bus messages

·   Settable Power up value.

·   Allows writing notes in processor memory

·   Receive and transmit FIFO buffers for CAN

	Firmware Note	381kB
	Firmware File [rev1]	4kB

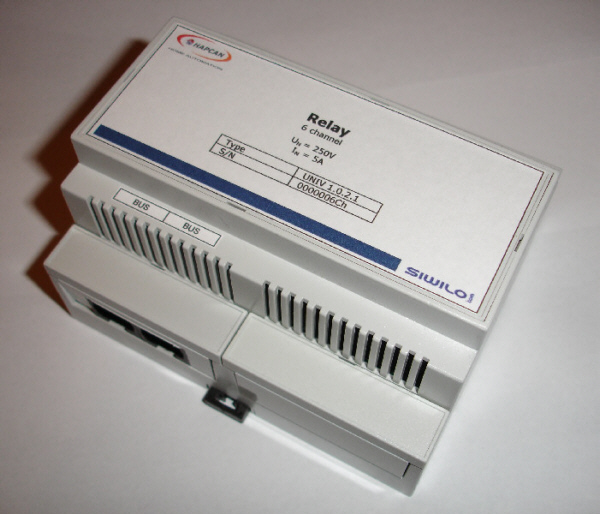

RELAY

6 channel

monostable

Hardware UNIV 1.0.2.1

·   Controller of 6 5A monosable relays.

·   Operation voltage 16-24V

·   Current consumption 17mA, maximum 125mA

·   For DIN rail mounting.

·   Dimensions 90x58x106 mm (6 mod)

	Application Note	434kB
	PE014012 relay datasheet	356kB

Firmware UNIV 1.0.2.11

·   Controller of 6 monostable relays

·   3 control instructions (on, off, toggle)

·   3 blocking instructions

·   6 timers (1 for each relay) for instruction execution delay 1s-20h

·   Allows to set up 96 conditions for receiving bus messages

·   Settable Power up value.

·   Allows writing notes in processor memory

·   Receive and transmit FIFO buffers for CAN

	Firmware Note	408kB
	Firmware File [rev2]	5kB

RELAY

6 channel

bistable

Hardware UNIV 1.0.2.2

·   Controller of 6 5A bistable relays. These relays take energy only when switching from one state to the other

·   Operation voltage 16-24V

·   Current consumption 17mA, maximum 150mA

·   For DIN rail mounting.

·   Dimensions 90x58x106 mm (6 mod)

	Application Note	406kB
	PE014(A/C)12 relay datasheet	446kB
	PE014(F/H)12 relay datasheet	155kB

Firmware UNIV 1.0.2.23

·   Controller of 6 bistable relays

·   3 control instructions (on, off, toggle)

·   3 blocking instructions

·   6 timers (1 for each relay) for instruction execution delay 1s-20h

·   Allows to set up 96 conditions for receiving bus messages

·   Settable Power up value.

·   Allows writing notes in processor memory

·   Receive and transmit FIFO buffers for CAN

·   Possibility to set up relay coil polarity

	Firmware Note	409kB
	Firmware File [rev4]	5kB

RELAY

6 channel

monostable

Hardware UNIV 1.0.2.3

·   Controller of 6 16A monostable relays.

·   Operation voltage 16-24V

·   Current consumption 17mA, maximum 217mA

·   For DIN rail mounting.

·   Dimensions 90x58x106 mm (6 mod)

	Application Note	605kB
	RT3x4012 relay datasheet	620kB
	RTS3x012 relay datasheet	591kB

Firmware UNIV 1.0.2.3

·   Controller of 6 monostable relays

·   3 control instructions (on, off, toggle)

·   3 blocking instructions

·   6 timers (1 for each relay) for instruction execution delay 1s-20h

·   Allows to set up 96 conditions for receiving bus messages

·   Settable Power up value.

·   Allows writing notes in processor memory

·   Receive and transmit FIFO buffers for CAN

	Firmware Note	247kB
	Firmware File [rev2]	5kB

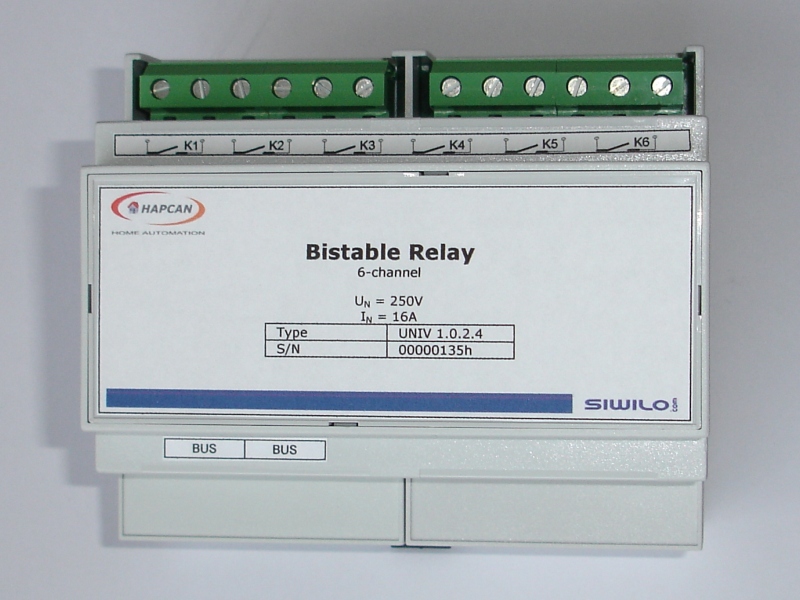

RELAY

6 channel

bistable

Hardware UNIV 1.0.2.4

·   Controller of 6 16A bistable relays. These relays take energy only when switching from one state to the other

·   Operation voltage 16-24V

·   Current consumption 17mA, maximum 70mA

·   For DIN rail mounting.

·   Dimensions 90x58x106 mm (6 mod)

	Application Note	988kB
	RT314x12 relay datasheet	522kB
	RTS3xx12 relay datasheet	591kB

Firmware UNIV 1.0.2.4

·   Controller of 6 bistable relays

·   3 control instructions (on, off, toggle)

·   3 blocking instructions

·   6 timers (1 for each relay) for instruction execution delay 1s-20h

·   Allows to set up 96 conditions for receiving bus messages

·   Settable Power up value.

·   Allows writing notes in processor memory

·   Receive and transmit FIFO buffers for CAN

	Firmware Note	239kB
	Firmware File [rev4]	5kB
